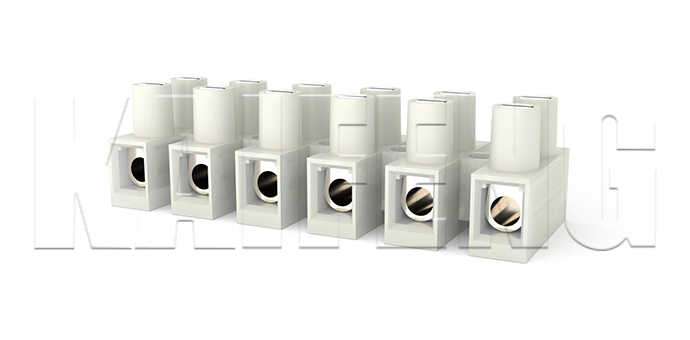

PCB Terminal Block KF12H-12.00mm（Copper block）
PCB Terminal Block MATERIAL：Screws：M3.5，Steel Zinc plated②block：Brass, Tin plated③Housing：Nylon PA66（UL94V-2） ELECTRICALULIECRated voltage600V 500V Rated current30A57AELECTRICAL16-8AWG 1.5-10.0mm2MechanicalTemp.rang-40℃～+110℃ Max.soldering+250℃ 5 secondsProduct numberKF12HBasehighH XPNo.of pol
Color
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
Product Drawing Material and Plating Electrical properties Mechanical behavior Product packaging
Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M3.5，Steel Zinc plated
  • Square
    Brass, Tin plated
  • Housing
    Nylon PA66（UL94V-2）
Electrical properties
  • Rated voltage
    600V?UL丨? 500V ?lEC
  • Rated current
    30A?UL丨?57A ?lEC
  • ELECTRICAL
    16-8AWG?UL丨? 1.5-10.0mm2 ?lEC
Mechanical behavior
  • Temp.rang
    LOW-40℃ 丨TOP+110℃
  • Max.soldering
    +250℃，5sec
  • Product number
    KF12H
  • Basehigh
    H
  • XP
    No.of pole 1…12:1 pole…12pole
  • WP
    -
  • Torque
    0.8N.m 7.02Lb.in
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
