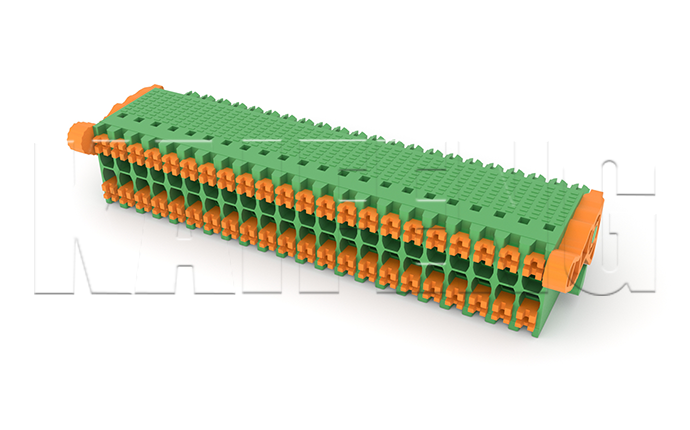

Pluggable Terminal Block KF12EDHF-3.50mm

Pluggable Terminal Block MATERIAL：PA66，UL94V-0Cover：PA66，UL94V-0Clip：Phosphor bronzeButton：PA66，UL94V-0Reed：Stainless steelWrench：PA66，UL94V-0ElectricalULIECRated voltage300V 320V Rated current10A13.4AContact resistance20mΩ（Max）Insulation resistance500MΩ/DC500VWithstanding voltage AC1600V/1minWire range28-16AWG 0.2-1.5mm2Mechanical溫

Color

Line count

Consult more

Product Parameters

Product Drawing
