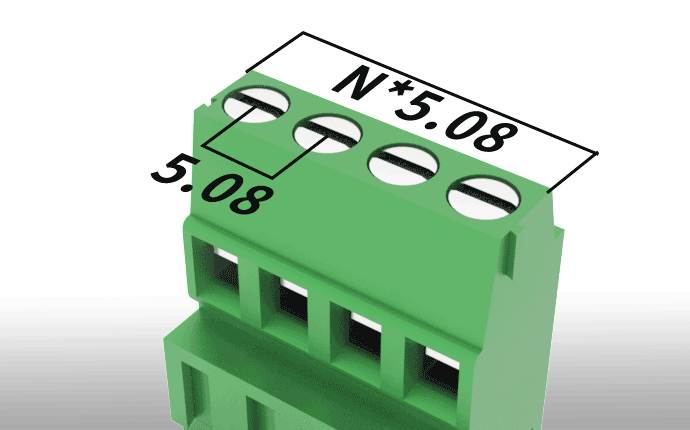

PCB Terminal Block KF128G-5.08mm

PCB Terminal Block MATERIAL：Screws:M2.5steel,Ni platedContact material:鐵Pin header:Brass, Tin platedHousing:PA66UL94V-0·MechanicalTemp.rang:-40°C+105°CMax.soldering:+250°C5 second torque:0.4Nm(3.6lb.in)Strip length:6-7mm·ELECTRICALRated voltage:300VRated current:10AContact resistance:20mΩInsulation resistance:5000MΩ\1000VWithstanding voltage :AC1500V\1MinWire range:24-12AWG2.5mm2

Color
